F5000 Auto Body Collision Repair System/used car frame machine

FOB Reference Price:Get Latest Price
$4,600.00 - $6,200.00 / Sets | 1 Set/Sets F5000 Auto Body Collision Repair System/used car frame machine (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Weight:
2300KG
Bench Height:
260-1600mm
Max. Hydraulic Pressure:
70 MPa
Max. Lifting Capacity:
3500kg
Max. Tension (N):
95KN
Worktable Length:
4160mm
Worktable Width:
900mm
Place of Origin:
Shandong, China
Brand Name:
SLIDE
Model Number:
F5000
Warranty:
1 Years
Product name:
F5000 Auto Body Collision Repair System/used car frame machine
Color:
Customers' Request
Mainly market:
America
Measuring system:
Measuring System
Certification:
CE Approved
Toolings carts:
Tooling Carts Optional
Using range:
Widely
Company history:
Years
Kinds of clamps:
Standard Clamps 4 Pcs
Payment:
T/T L/C
Supply Ability
Supply Ability:
300 Set/Sets per Month F5000 Auto Body Collision Repair System/used car frame machine
Packaging & Delivery
Packaging Details
Standard Export Packing for F5000 Auto Body Collision Repair System/used car frame machine
Port
YANTAI OR QINGDAO,PORT
Lead Time :
7-15 working days afer payment
Similar Products
Product Description
Model Number
F5000
Length
4160mm
Width
900mm
Height
260-1600mm
Air Supply Required
0.8Mpa
Hydraulic Power
70Mpa
Power puliing capacity
95KN
Padius of pulling
360°
Weight
2000KG
Maximum load
3500KG
Specification

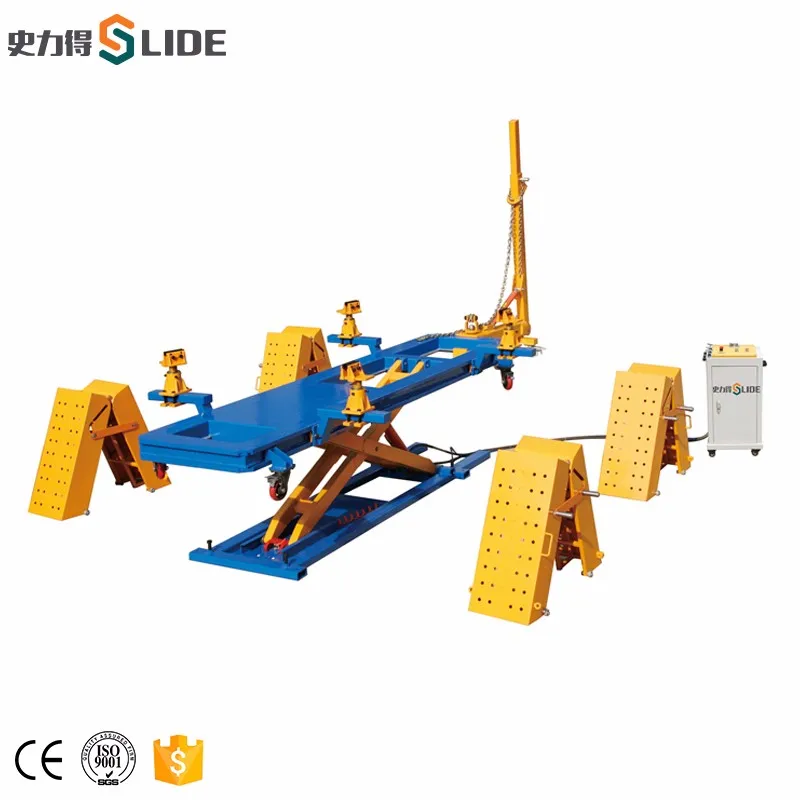

1. European working frame machine, welded with cold high alloy rectangular tubes, full plate and high intensity. Controlled by electronic hydraulic pump, the lifting frame is operated conveniently and quickly.

2. The car collision straightening and pulling platform is spliced by steel plate and rectangle tube through carbon dioxide welding.

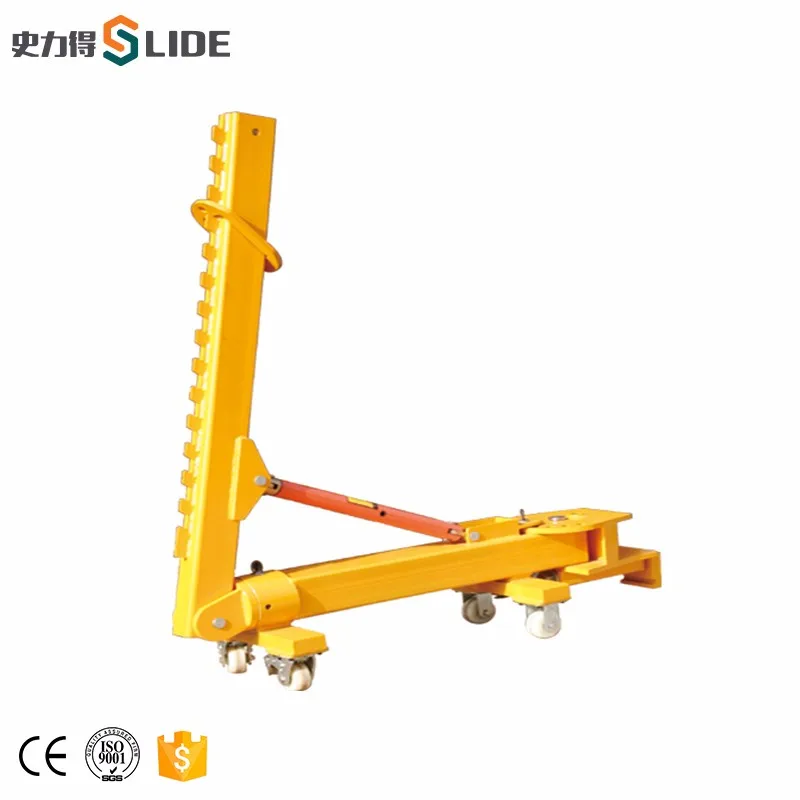

3. Specially designed ramp,and with the strong universal towers, it is very easy to pull the cars at any angle as the towers are easily to move and fixed at any point of the platform.

4. Patent design of main clamp jaw, one screw,and fixes the car body and the main clamp together. 5,Scientific design, fixed firmly, quick operation,and greatly improve the work efficiency.

6. High quality chain and forged sheet metal tools are easy and convenient to operate with long service life.

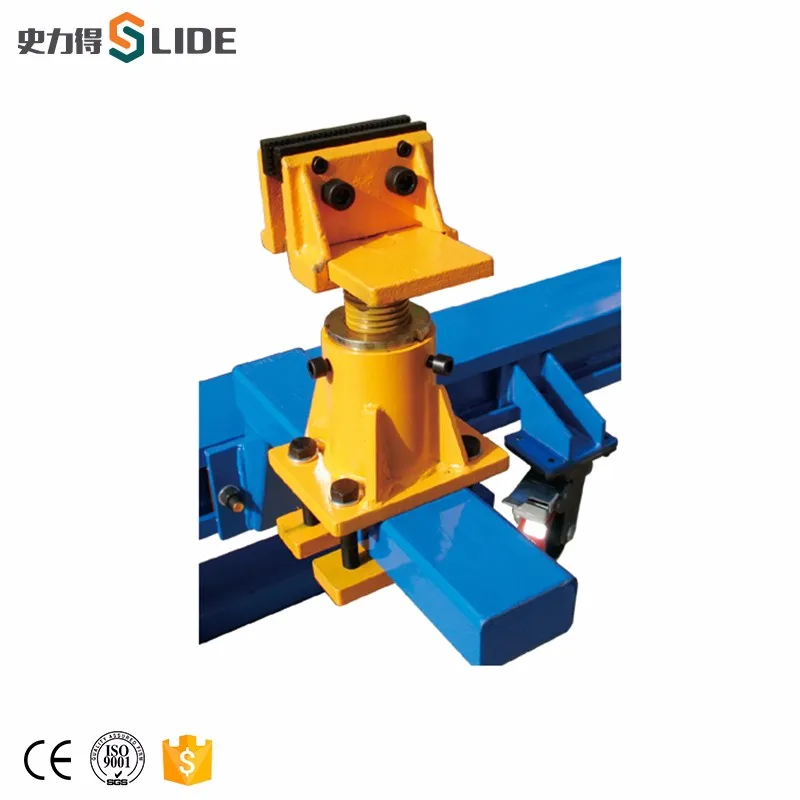

7. The height of the principal clamps is adjustable and this helps to orientate and clamp the car fast, exactly and firmly.

Detailed Images

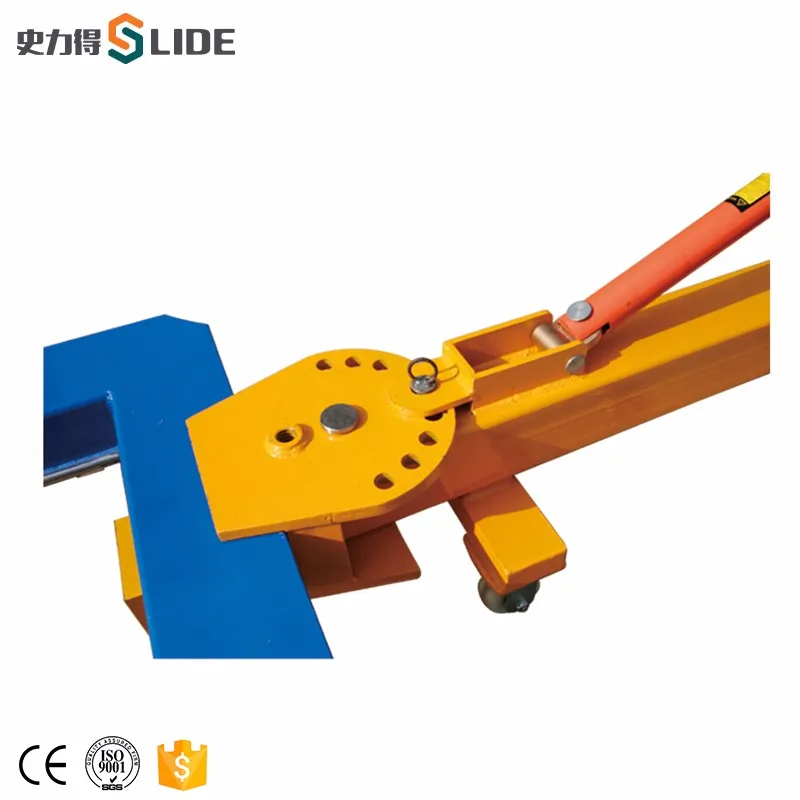

Patent guide-ring, ensure that the stretching process is safer and more stable

With wide-range applications, fixtures make it more convenient for location and clamping.

Hydraulic lifting system

Safe pneumatic pume with strong power

Our Company

    Yantai Lide Automotive Equipment Manufacturing Co,Ltd,  which is a combination of production and trade, industry and trade integration business. With our own brand “SLIDE”, we making efforts to supply high quality equipment including types of Auto Car Body Frame Machine, Car lifting machine , and kings of tools.

    Since its establishment, specializing in automobile detection and maintenance of equipment R&D, manufacturing, sales and import and export business, is a modern, high-tech enterprises.
    Company has strong technical strength, excellent experiments, testing equipment, with more advanced production equipment. Our company has won the honer of “Annual credit enterprise in 2012”, “Excellent enterprise in Yantai City in 2013”, and our company is the one of companies in Yantai who is first have the right to proprietary importing. We got the ISO9002 certification in 2008.
    The company has the advanced production technology, and combined with years of domestic sales experiences, the vital understanding of real need of customers, and we provide OEM service.
    Our company is based on high-tech, already well- known in China and the world. Our products are export to USA, Canada, New Zealand, Brazil, Australia, Russia, South Africa and other countries, also the whole China.
    Our company belief “Credibility is first, quality is root, customer is god.”, we are a great team. We will continue to establish and perfect the service system, so that every touch of every customer can achieve the best cooperation.

Factory

Packing & Delivery

Our most professional packaging

We can packaging as your request


We ship to you 7-15 working days afer payment.


FAQ


1.Why choose us ?
Yantai LIDE is a very professioanl car maintenance equipment supplier. We have rich experience in this industry.

2. Can you make the machine size and color as our request?
Yes, we can make the machine size and color according to your request.

3. What’s the Min order to your company?
1 set.

4. OEM is available?
Yes, we can put your logo on the machine if needed.And we can make the machine structure as your design request.

5. What kind of measuring system do you have?
We have the two dimension measuring,three dimension measuring and electric measusing system for your choice.

6.Can you match the requirement that the customer?
Yes, we have the factory and designer.
